產(chǎn)品名稱(chēng)：HG-W680 返回
產(chǎn)品型號(hào)：HG-W680
HG-W680介紹

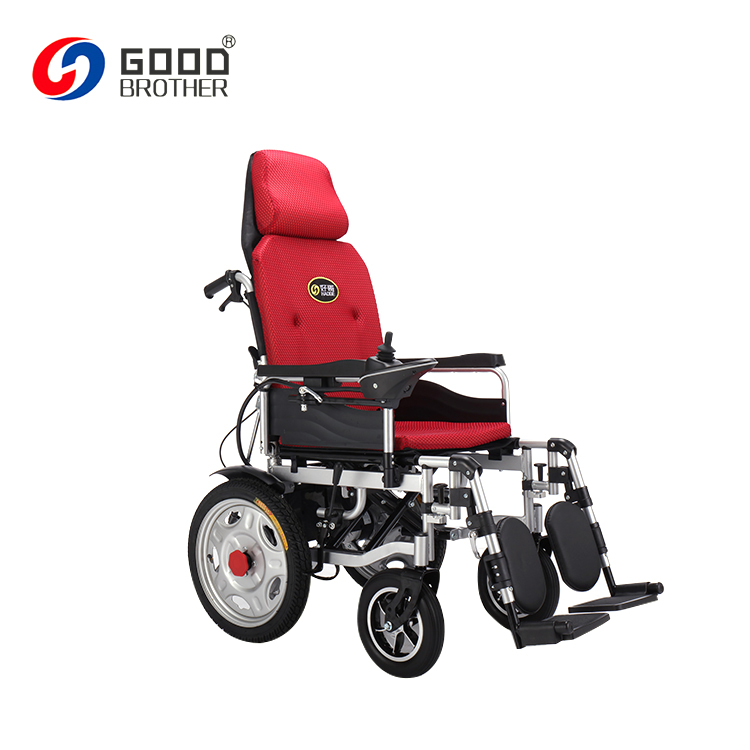

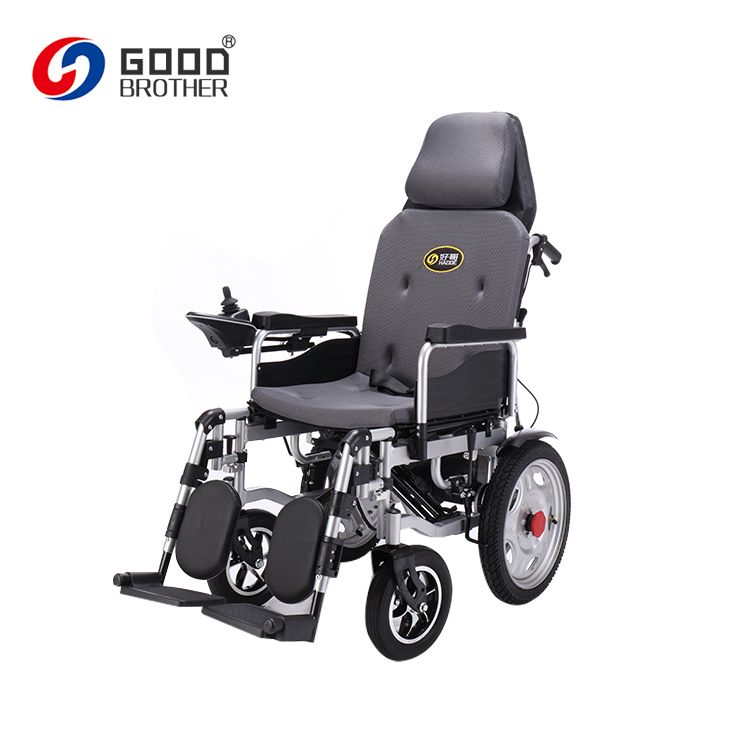

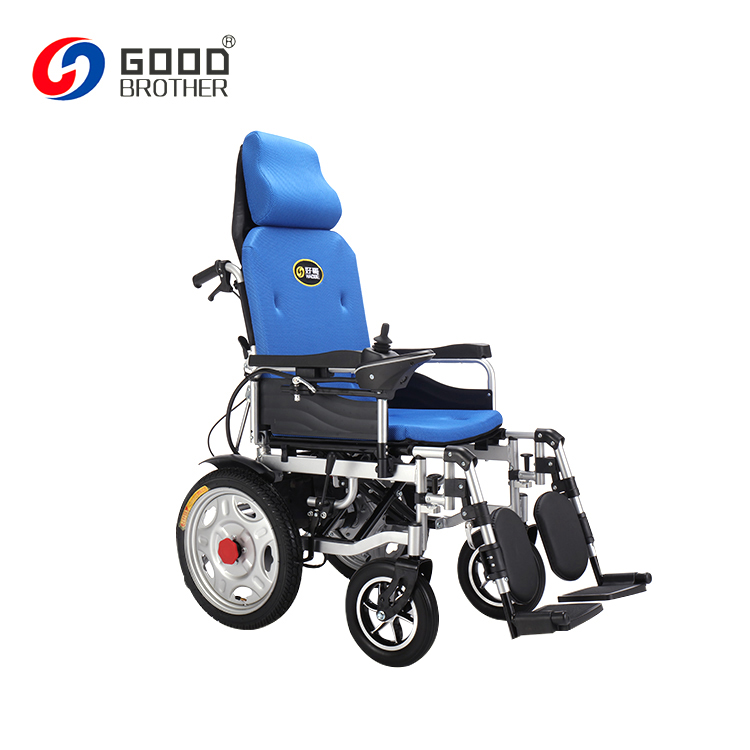

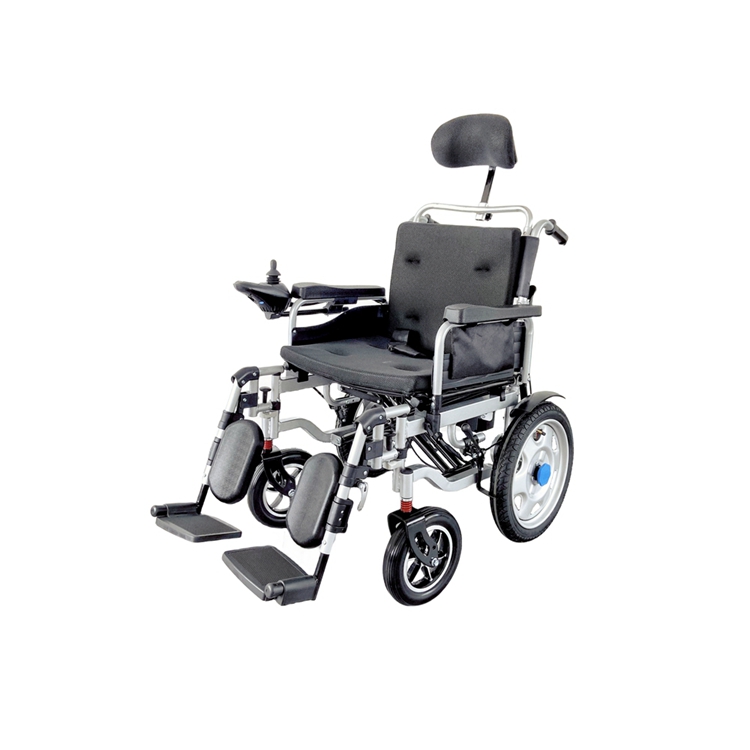

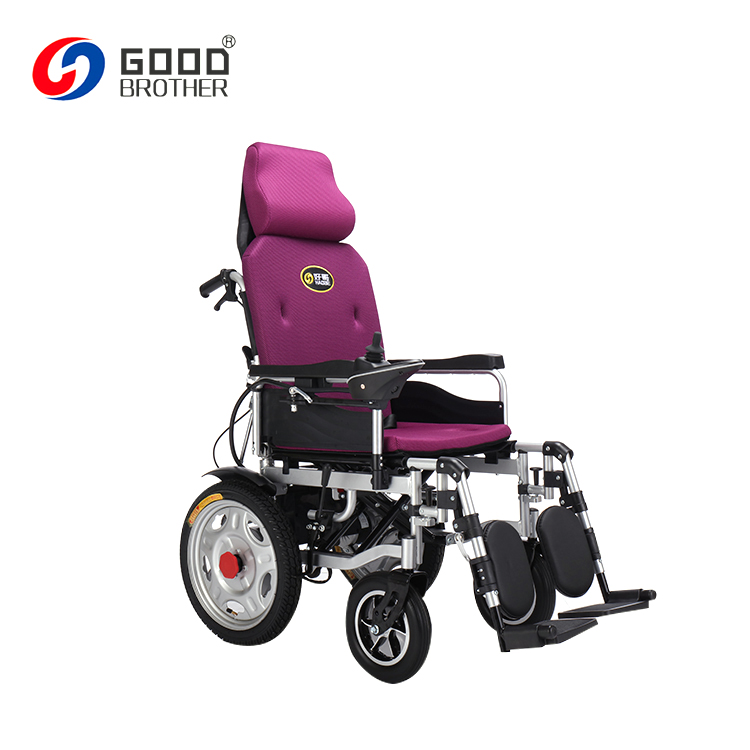

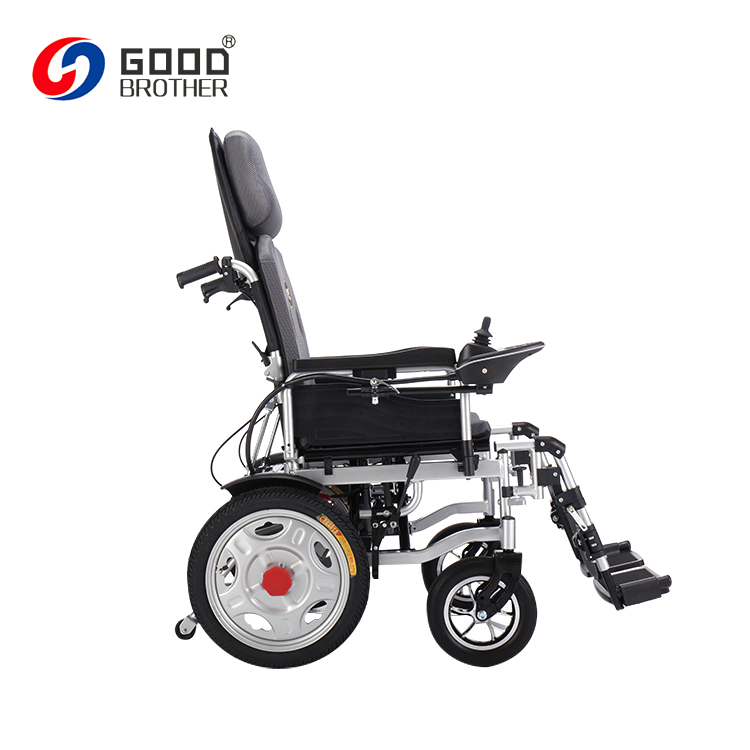

Electric wheelchair for disabled people HG-W680
Model HG-W680 (child, standard, wide) electric wheelchair

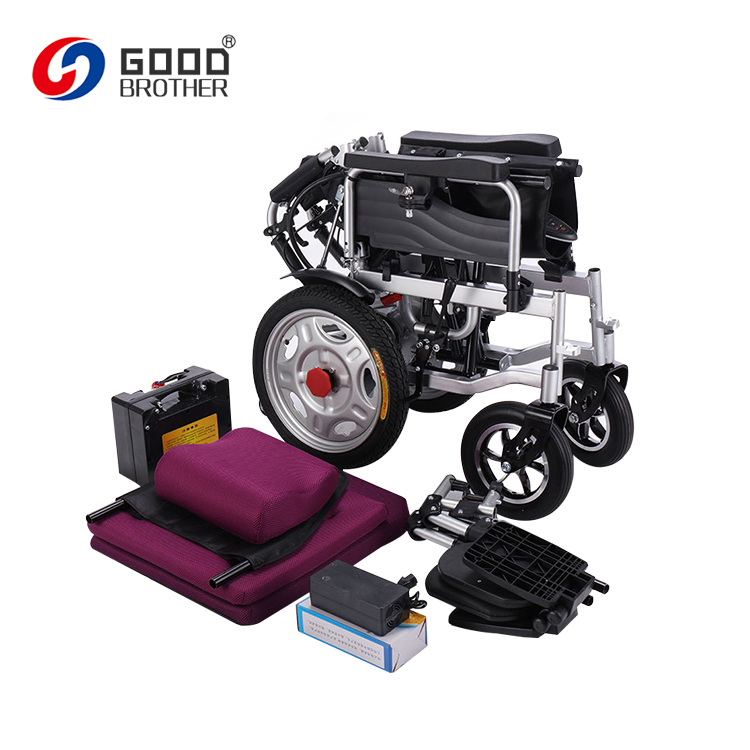

Folded size, cm 82 x 40 x 71
Size in working condition , cm 122 x 65 x 128
Load capacity, kg 130
Complete weight, kg 4 4 (child) , 45 ( standard ), 4 6 (wide)
Dynamic stability on slopes up to 9°
Static stability on slope up to 12°
Travel distance on 1 charge, km 20
Maximum speed, km/h 6
Speed limit, km/h from 1 to 6
Turning radius, cm 100
Maximum height of the barrier to be overcome, cm 3
Electric motor
Type brushless dc motor
Rated power , W 250 * 2 pcs.
Input voltage , VDC 24
Battery
Type Lithium-ion ( Li - ion ) battery
Capacity , Ah 12
Output voltage , VDC 24
Charging method AC charger 220 V, 50 Hz, included
Front wheel
Wheel diameter, disk with tire, cm 24.5
Wheel rim material polyethylene, solid cast
Tire material polyurethane
Angle of direction of movement, degrees 360
Quantity, pcs. 2
Rear wheel
Wheel diameter, disk with tire , cm 40
Wheel rim material metal, aluminum, solid cast
Tire material rubber, with rubber bladder
Quantity 2 pcs.

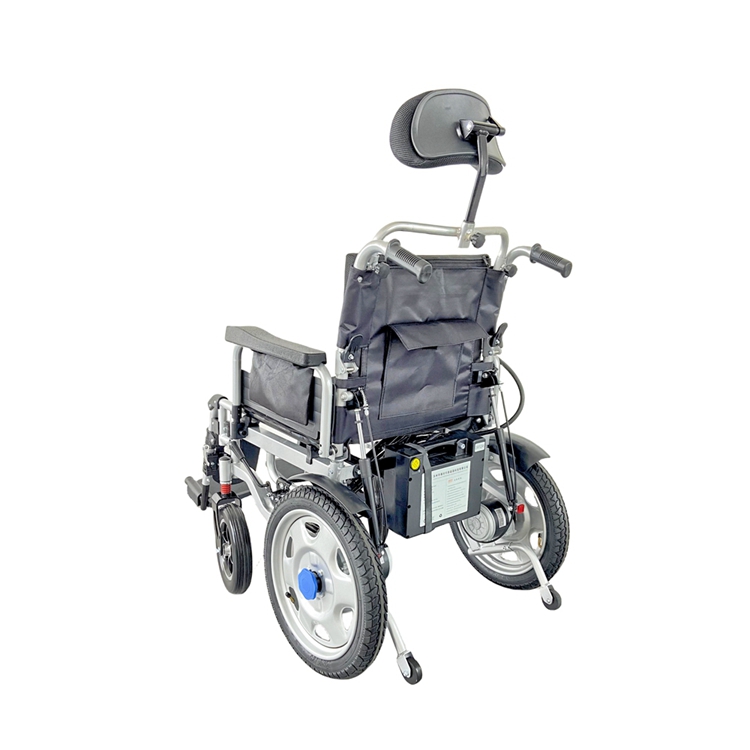

Back with pocket at back
Material of manufacture nylon, 2 layers of synthetic fabric, with a back pocket of the same material

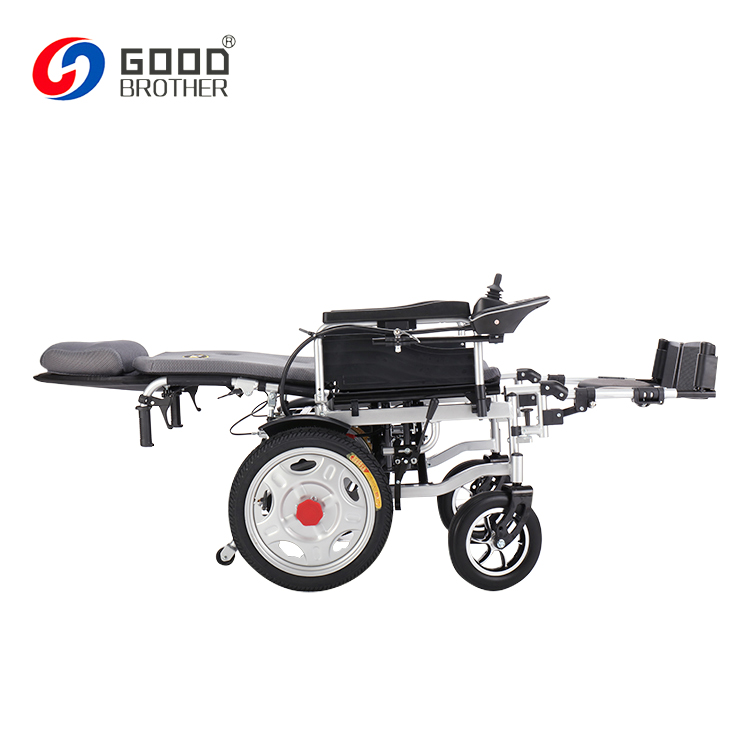

Adjustment angle , degree 90 – 170
Height without headrest , cm 80
Seat
Material of manufacture nylon, 2 layers of synthetic fabric
Width between two armrests , cm 35 (child) , 45 ( standard ), 55 ( wide )
Electronic control unit
Input voltage , VDC / current , A 24/2
Battery charge level _ _ indicator
Installation of the electronic control unit (handle) On the left and right side on the armrest
Possibility of charging mobile devices Via USB connector at the base of the joystick
Controlling the movement of the wheelchair and turning the wheelchair Joystick handle
Movement with electric drive switched off Manual, with the help of an accompanying person, there is a handle
Braking efficiency Less than 1.5 m
Frame double cross-shaped, with folding, made of steel, electrostatically coated with steel-colored polymer powder paints
Armrests folding, with a soft surface at the point of contact with the elbow
Brake electromagnetic brake and manual parking brake left and right
Footrests adjustable in height, removable, with calf support
Headrest 30 cm, removable , adjustable, with metal rod
Anti-tippers adjustable , with casters
Lap belt made of specially wear-resistant material
Tools 1 unit universal wrench, 1 pc. Screwdriver, 2 pcs. Hexagon, 1 unit. Internal hexagon
Charger AC power supply 220 V, 50 Hz
